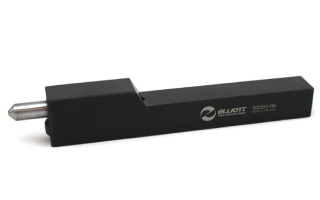

Diamond Burnishing Specifications
Standard Options
| Tool Number | Description |
|---|---|
| S2300-00 | 0.750″ square with o set tool holder |
| S2300-00M | 20mm shank with o set tool holder |
| S2300A00 | 1.000″ square with o set tool holder |
| S2300A00M | 25mm square with o set tool holder |
| S2300M00 | 1.000″ x 25mm “square” shank with the diamond on center |
| S2295-00 | 0.750″ square shank with boring bar arm on center |
Replacement Parts
| CompleteTool | Diamond Stem | Spring | Screw |
|---|---|---|---|
| S2300-00 | S375D1 | S375-4-165 | P8597-2N |
| S2300A00 | S375D1 | S375-4-165 | P8597-2N |
| S2300B00 | S375D1 | S375-4-165 | P8597-2N |
| S2300M00 | S375D1 | S375-4-165 | 128Y |
| S2295-00 | S2295D1 | — | 548H |
| S2300-00M | S375D1 | S375-4-165 | P8597-2N |
| S2300A00M | S375D1 | S375-4-165 | P8597-2N |
| S2300B00M | S375D1 | S375-4-165 | P8597-2N |
Part Preparations
100-120 RMS
Feed Rate
0.003”/0.004”
Speed
250-500 SFM (750 Max)
Coolant Required
Water Soluble Or Oil
