5224XL & 5125 Series Specifications

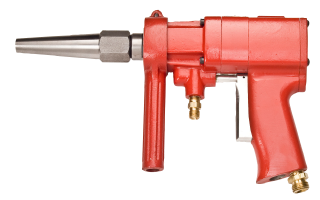

5224XL Series

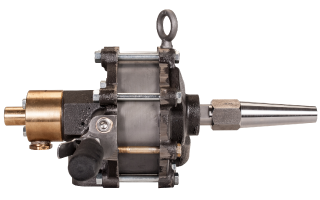

5125 Series
Tube OD Range
3/8″ to 1-1/4″
(9.52 to 31.75mm)
5/8″ to 2.0″
(15.8 to 50.8mm)
Specifications
| Motor | RPM | Air Hose Supply | Air Specifications | Water Specifications | Motor Weight |
|---|---|---|---|---|---|
| 5224XL | 1,500 | 3/4″ (19.0mm) | 45 CFM (1.3 M3/min) @ 90PSI (6.2bar) | 50 PSI (3.4bar) | 6 lbs (2.72 Kg) |
| 5125 | 1,600 | 1″ (25.0mm) | 175 CFM (5.0 M3/min) @ 90PSI (6.2bar) | 50 PSI (3.4bar) | 35 lbs (15.9 Kg) |
5125 Series Kits
| Tube ID Range | Water Flush | Air Flush |
|---|---|---|
| 0.481″ – 0.56″ (12.22 – 14.22mm) |
5125-43 | 5125AP43 |
| 0.584″ – 0.685″ (14.83 – 17.40mm) |
5125-50 | 5125AP50 |
| 0.709″ – 0.81″ (18.0 – 20.57mm) |
5125-62 | 5125AP62 |
| 0.834″ – 1.06″ (21.18 – 26.92mm) |
5125-75 | 5125AP75 |
| 1.084″ – 1.902″ (27.53 – 48.31mm) |
5125-87 | 5125AP87 |
Kit Includes: Cleaner Motor, Wrench, Hex Key, Set of Paddles, 15ft. (4.6M) Water Feed Hose, Motor Coupling, 5ft. (1.5M) Motor Shaft, (3) 5ft. (1.5M) Extension Shafts, Extension Coupling, Lubricator.
5224XL Series Kits
| Tube ID Range | Water Flush | Air Flush |
|---|---|---|
| 0.305″ – 0.356″ (7.75 – 9.04mm) |
5224XL25 | 5224XLBMC25 |
| 0.370″ – 0.407″ (9.40 – 10.34mm) |
5224XL31 | 5224XLBMC31 |
| 0.435″ – 0.459″ (11.05 – 11.66mm) |
5224XL37 | 5224XLBMC37 |
| 0.481″ – 0.560″ (12.22 – 14.22mm) |
5224XL43 | 5224XLBMC43 |
| 0.584″ – 0.685″ (14.86 – 17.40mm) |
5224XL50 | 5224XLBMC50 |
| 0.657″ (16.70mm) |
5224XL51 | 5224XLBMC51 |
| 0.685″ (17.40mm) |
5224XL52 | 5224XLBMC52 |
| 0.709″ – 0.810″ (18.01 – 20.57mm) |
5224XL62 | 5224XLBMC62 |
| 0.834″ – 1.032″ (21.18 – 26.21mm) |
5224XL75 | 5224XLBMC75 |
Kit Includes: Cleaner Motor, Wrench, Tool Box, 5ft. (1.5M) Motor Shaft, (3) 5ft. (1.5M) Extension Shafts, Motor Coupling, Set of Paddles, Filter/Lubricator, 7-1/2ft. (2.3M) Hose Whip.

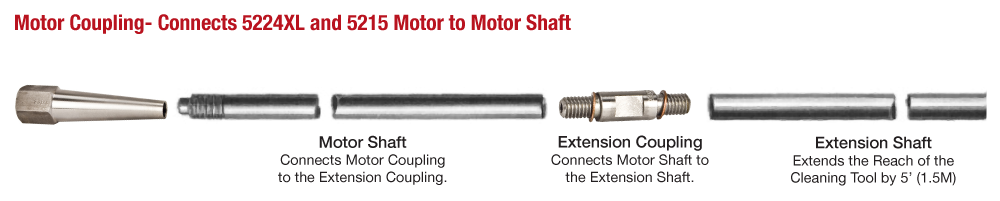

Elliott Tool offers a number of shafts and couplings to be used with the 5224XL and 5125 Heat Exchanger Tube Cleaners to accommodate different tube sizes and tube lengths.
| Tube ID Range | Cleaning Shaft OD | Motor Shaft* | Motor Shaft Thread | Motor Coupling | Extension Coupling Gasket** | Extension Coupling | Extension Shaft |
|---|---|---|---|---|---|---|---|
| 0.370″ – 0.407″ (9.40 – 10.32mm) |
5/16″ (7.9mm) |
5213-(FT) | #10-32F | 5213C | |||
| 0.435″ – 0.459″ (11.05 – 11.66mm) |
3/8″ (9.5mm) |
5214-(FT) | 1/4-20F | 5214C | 501406 | 5014-(FT) | |
| 0.481″ – 0.560″ (12.22 – 14.22mm) |
7/16″ (11.1mm) |
5215-(FT) | 5/16-18F | 5215C | P5034A | CS113106 | 5015-(FT) |
| 0.584″ – 0.685″ (14.83 – 16.56mm) |
1/2″ (12.7mm) |
5216-(FT) | 3/8-16F | 5216C | P5034B | CS113206 | 5016-(FT) |
| 0.709″ – 0.810″ (18.01 – 20.57mm) |
5/8″ (15.9mm) |
5218-(FT) | 3/8-16F | 5218C | P5034C | CS113406 | 5018-(FT) |
| 0.834″ – 0.902″ (21.18 – 22.91mm) |
3/4″ (19.1mm) |
5219-(FT) | 1/2-13F | 5219C | P5034D | CS113506 | 5059-(FT) |
NOTE: *Specify shaft length in feet (i.e. 5213-5). **Included with each Extension Coupling, except where noted.
For additional lengths and sizes contact customer service.
