99 Series Specifications

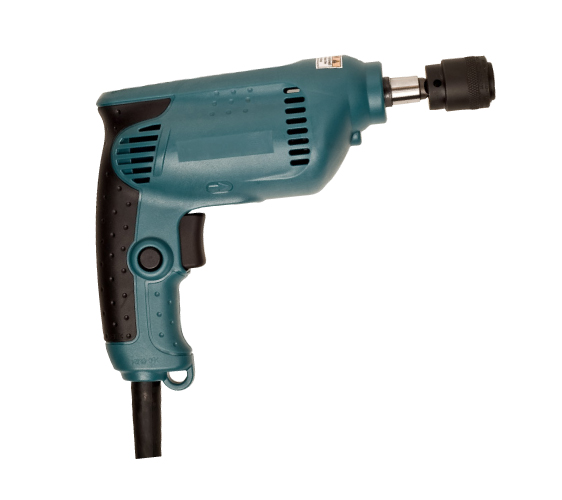

99062 Motor
99150 Motor

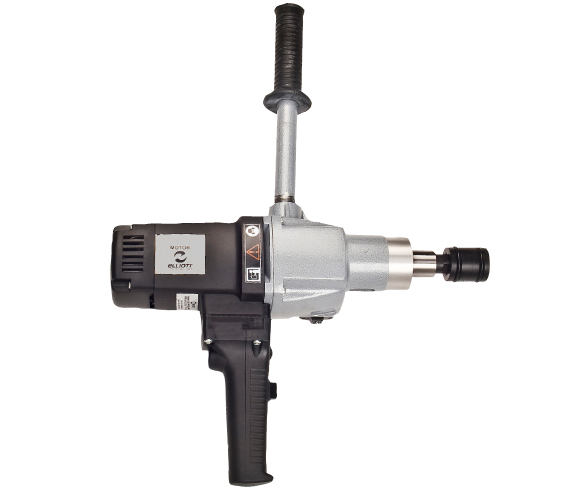

99300 Motor
Tube OD Range*
1/4″ to 5/8″
(6.4 – 15.9mm)
1/2″ to 1-1/2″
(12.7 – 38.1mm)
1″ to 3″
(25.4 – 76.2mm)
Voltage
110 or 220V
Motor Type
Auto-Reverse
Manual Reverse
Hz
50-60
Amps (max)
110V: 4.3 amps
220V: 2 amps
220V: 2 amps
110V: 10 amps
220V: 5 amps
220V: 5 amps
110V: 16 amps
220V: 8 amps
220V: 8 amps
Free Speed RPM
(No Load)
(No Load)
3,000
760 (Low Gear)
1,250 (High Gear)
1,250 (High Gear)
75 (Low Gear)
250 (High Gear)
250 (High Gear)
Max Torque
(@ Max Amps)
(@ Max Amps)
15 in lbs @ 1,900 RPM
12 ft lbs @ 290 RPM
8 ft lbs @ 690 RPM
8 ft lbs @ 690 RPM
102 ft lbs @ 72 RPM
30 ft lbs @ 244 RPM
30 ft lbs @ 244 RPM
Weight
2.7 lbs
(1.2 kg)
(1.2 kg)
8.5 lbs
(3.9 kg)
(3.9 kg)
17 lbs
(7.7 kg)
(7.7 kg)
Spindle Drive Size
3/8 Male Sq
1/2 Male Sq
3/4 Male Sq
Included Square Chuck
1/4 & 3/8 Fem
Quick Change
Quick Change
3/8 & 1/2 Fem
Quick Change
Quick Change
3/4 & 1 Fem
Socket
Socket
Included Tool Box
156G
153K
Carbon Brush Replacement Set
44-191627-8
40-80700013-2
40-80700021-2
Spares & Accessories
ELC110220 Electric Torque Controller
Motor Adaptor Cord
* Tube size range may vary due to tube wall thickness, wall reduction, material, tube sheet thickness, lubrication, operating condition, and/or operator technique.
