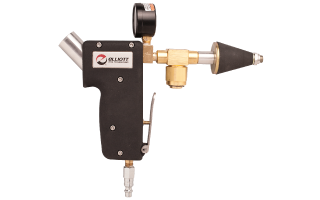

RECON Series 1500

Vacuum Test Guns

RECON 1500 Series Specifications

Tube ID Range

0.280″ to 2.456″
(7.1 to 62.4mm)

Air Requirements

Minimum: 40 PSI (2.7 bar)
Maximum: 130 PSI (8.9bar)

Test Gun Kits

Tube ID Range Tube Leak Test Gun Kit Seal & Washer Set
0.280″ – 0.690″
(7.1 – 17.5mm)
TTV1500 TTVS1
0.640″ – 1.450″
(16.2 – 36.8mm)
TTV1500 TTVS2
1.490″ – 2.456″
(37.8 – 62.4mm)
TTV1500 TTVS3

RECON 1500 Kit:

  • Tube Leak Test Gun
  • T-Handle Plugging Tool
  • 2 Seal & Washer Sets (TTVS1, TTVS2)
  • Tool Case

Support Tube Extensions

Tube ID Range 12″
(305mm)
24″
(610mm)
36″
(914mm)
48″
(1,219mm)
0.280″ – 0.690″
(7.1 – 17.5mm)
TTVST1-12 TTVST1-24 TTVST1-36 TTVST1-48
0.640″ – 1.450″
(16.2 – 36.8mm)
TTVST2-12 TTVST2-24 TTVST2-36 TTVST2-48

Spares & Accessories

Seal & Washer Sets:

TTVST3 and TTVS3 are available to accommodate larger tube sizes. TTVST3 includes a seal and washer set for the Support Tube and T-Handle Plugging Tool.

Support Tube Extensions:

Make finding leaks easier on channel head and water box applications. Available in lengths of 12″, 24″, 36″, and 48″. Support Tubes are backward-compatible.

Filter Element (TTV1500FE)

Contact us for more information or to request a quote.
