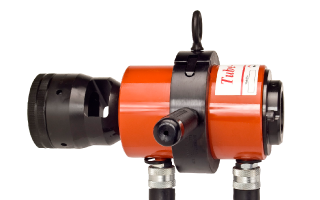

Tube Tugger

Semi-Continuous Hydraulic Tube Pulling System

Tube Tugger Specifications

Tube OD Range

0.625” to 1.250”
(15.9 –31.8mm)

Capacity

30 Ton (27.2mt)

Stroke

3.000″ (76.2mm)

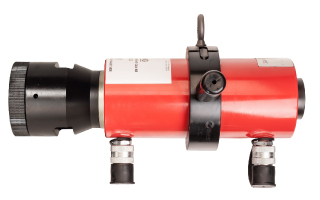

6.000″ (152.4mm)

Diameter

6.500″ (165.1mm)

Lengths

Collapsed: 12.940″ (329.0mm)
Extended: 15.940″ (405.0mm)

Collapsed: 18.000″ (457.0mm)
Extended: 22.000″ (559.0mm)

Length Across Handles

18.250″ (464.0mm)

Tube Tugger Kit

Tube Pulling Hydraulic Cylinder
Suspension Bracket Assembly with Side Handles
Collet Holder Assembly
(2) 15ft. (4.6m) Hydraulic Hose
Release Fork
Nose Piece Adapter
Set of Spanner Wrenches

Spares & Accessories

TCB48-66 Counter Balance
Spears*
Collet Set*
Nose Piece*
Hydraulic Pump (110V, 220V, or Pneumatic)*

* Required to operate the Tube Tugger

Contact us for more information or to request a quote.
