Tube Hole Gauge Specifications
Tube OD Range
0.375″ to 2.000″
(9.5 to 51.0mm)
Tube Hole Gauge Package

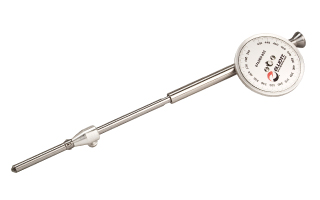

Tube Hole Gauge
Setting Ring
Screwdriver
Wrench
Storage Box
Spares & Accessories
Mandrel Extension
Will add 8″ (203.2mm) to maximum reach. One Body Extension is required for each Mandrel Extension.
Body Extension
Will add 8″ (203.2mm) to maximum reach. One Mandrel Extension is required for each Body Extension.
Mandrel
Body
Setting Ring
| Tube OD | ID Range | Tube Hole Gauge | Reach | Setting Ring | Mandrel Extension* | Body Extension* |
|---|---|---|---|---|---|---|
| 3/8″ (9.5mm) |
0.290″ – 0.350″ (7.4 – 8.9mm) |
876200-375 | 4″ | 8252-3/8 | 876210-500 | 876211-375 |
| 1/2″ (12.0mm) |
0.350″ – 0.450″ (8.9 – 11.4mm) |
876200-500 | 4″ | 8252-1/2 | 876210-500 | 876211-500 |
| 5/8″ (15.9mm) |
0.440″ – 0.560″ (11.0 – 14.2mm) |
876200-625 | 4″ | 8252-5/8 | 876210-500 | 876211-625 |
| 3/4″ (19.1mm) |
0.550″ – 0.715″ (14.0 – 18.2mm) |
876200-750 | 8″ | 8252-3/4 | 876210-500 | 876211-750 |
| 7/8″ (22.2mm) |
0.675″ – 0.840″ (17.1 – 21.3mm) |
876200-875 | 8″ | 8252-7/8 | 876210-500 | 876211-750 |
| 1″ (25.4mm) |
0.800″ – 0.965″ (20.3 – 24.5mm) |
876200-1000 | 8″ | 8252-1 | 876210-500 | 876211-750 |
| 1-1/4″ (31.8mm) |
0.950″ – 1.170″ (24.1 – 29.7mm) |
876200-1250 | 8″ | 8252-1-1/4 | 876210-500 | 876211-750 |
| 1-3/8″ (35.0mm) |
1.085″ – 1.295″ (27.5 – 32.9mm) |
876200-1375 | 8″ | 8252-1-3/8 | 876210-500 | 876211-750 |
| 1-1/2″ (38.1mm) |
1.240″ – 1.450″ (31.5 – 36.8mm) |
876200-1500 | 8″ | 8252-1-1/2 | 876210-1500 | 876211-1500 |
| 1-3/4″ (44.5mm) |
1.440″ – 1.650″ (36.6 – 41.9mm) |
876200-1750 | 8″ | 8252-1-3/4 | 876210-2000 | 876211-1750 |
| 1-7/8″ (47.6mm) |
1.630″ – 1.840″ (41.4 – 46.7mm) |
876200-1875 | 8″ | 8252-1-7/8 | 876210-2000 | 876211-2000 |
| 2″ (50.8mm) |
1.700″ – 1.910″ (43.2 – 48.5mm) |
876200-2000 | 8″ | 8252-2 | 876210-2000 | 876211-2000 |
*Note: Extensions will add 8 inches of reach.
