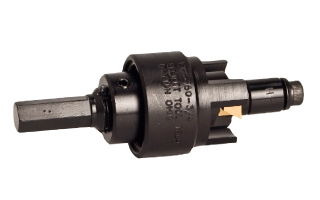

ETF Series Specifications
Tube OD Range
0.375″ to 1.500″
(9.5 to 38.1mm)
Spares & Accessories
| Tube OD | BWG | Tube Facer* | Tool Bits** | Pilot |
|---|---|---|---|---|
| 3/8″ (9.53mm) |
16-23 | ETF375 | ETF376 | ETF375P(ga) |
| 1/2″ (12.70mm) |
16-23 | ETF500 | ETF506 | ETF500P(ga) |
| 5/8″ (15.88mm) |
14-23 | ETF625 | ETF626 | ETF625P(ga) |
| 3/4″ (19.05mm) |
10-23 | ETF750 | ETF756 | ETF750P(ga) |
| 7/8″ (22.22mm) |
10-23 | ETF875 | ETF876 | ETF875P(ga) |
| 1″ (25.40mm) |
10-23 | ETF1000 | ETF1006 | ETF1000P(ga) |
| 1-1/8″ (28.58mm) |
10-23 | ETF1125 | ETF1126 | ETF1125P(ga) |
| 1-1/4″ (31.75mm) |
10-23 | ETF1250 | ETF1256 | ETF1250P(ga) |
| 1-3/8″ (34.93mm) |
10-23 | ETF1375 | ETF1376 | ETF1375P(ga) |
| 1-1/2″ (38.10mm) |
10-23 | ETF1500 | ETF1506 | ETF1500P(ga) |
*Specify Non-Ferrous or Stainless Steel Tool Bit when ordering.
**Add SS to the end for Stainless Steel bits.
Drive Motors
Electric Motors
Pneumatic Motors
Specifications
Model 447000
110 V, 50/60 Hz, 16 Amp
2 Speed Variable Speed Motor: 60-140RPM, 200-470 RPM
Weight: 16 lbs (7.26kg)
Model 447000-220
220 V, 50/60 Hz, 8 Amp
2 Speed Variable Speed Motor: 60-140RPM, 200-470 RPM
Weight: 16 lbs (7.26kg)
*Motors are supplied with 5/8″ Jacob’s chuck and 3/4″ Square Female Socket Adapter.
Model P5154
23CFM @ 90 PSI (6.2bar)
1/4″ NPTF- 5/16″ (8mm) ID Air Supply Hose
325 RPM
Weight: 5-1/2 lbs (2.5kg)
Model P5476C
23CFM @ 90 PSI (6.2bar)
1/4″ NPTF- 5/16″ (8mm) ID Air Supply Hose
100 RPM
Weight: 5-1/2 lbs (2.5kg)
*Motors are supplied with 1/2″ Jacob’s chuck
