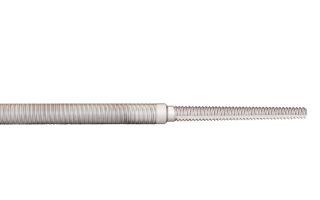

TT Series Tube Spear Specifications
Tube OD Range
0.625” to 2.000”
(15.9 – 50.8mm)
Part Numbers
P8788 Spear Lubricant: Recommended for use on spear threads to increase spear life.
| Tube OD | BWG | 29″ Reach Spear | 48″ Reach Spear | Spear Diameter* | Male Sq. Size | Nose Piece | Collet Set with O-Ring* |
|---|---|---|---|---|---|---|---|
| 5/8″ (15.9mm) |
7 8-9 10-12 13-15 16-18 19-24 |
TT625-7 TT625-8 TT625-10 TT625-13 TT625-16 TT625-19 |
TT625-7-48 TT625-8-48 – – – – |
0.245″ – 0.385″ (6.2 – 9.8mm) 0.280″ – 0.432″ (7.1 – 11.0mm) 0.342″ – 0.482″ (8.7 – 12.2mm) 0.425″ – 0.545″ (10.8 – 13.8mm) 0.485″ – 0.589″ (12.3 – 15.0mm) 0.531″ – 0.615″ (13.5 – 15.6mm) |
1/2″ | 80-40125N062 | 80-40125C062 |
| 3/4″ (19.1mm) |
7 8-9 10-12 13-15 16-18 19-24 |
TT750-7 TT750-8 TT750-10 TT750-13 TT750-16 TT750-19 |
TT750-7-48 TT750-8-48 TT750-10-48 TT750-13-48 TT750-16-48 TT750-19-48 |
0.370″ – 0.528″ (9.4 – 13.4mm) 0.405″ – 0.576″ (10.3 – 14.6mm) 0.467″ – 0.625″ (11.9 – 15.9mm) 0.550″ – 0.685″ (14.0 – 17.4mm) 0.610″ – 0.727″ (15.5 – 18.5mm) 0.656″ – 0.750″ (16.7 – 19.1mm) |
5/8″ | 80-40125N075 | 80-40125C075 |
| 7/8″ (22.2mm) |
7 8-9 10-12 13-15 16-18 19-24 |
TT875-7 TT875-8 TT875-10 TT875-13 TT875-16 TT875-19 |
TT875-7-48 TT875-8-48 TT875-10-48 TT875-13-48 TT875-16-48 TT875-19-48 |
0.495″ – 0.653″ (12.6 – 16.6mm) 0.530″ – 0.701″ (13.5 – 17.8mm) 0.592″ – 0.750″ (15.1 – 19.1mm) 0.675″ – 0.810″ (17.1 – 20.6mm) 0.735″ – 0.852″ (18.7 – 21.6mm) 0.781″ – 0.875″ (19.8 – 22.2mm) |
5/8″ | 80-40125N087 | 80-40125C087 |
| 1″ (25.4mm) |
7 8-9 10-12 13-15 16-18 19-24 |
TT1000-7 TT1000-8 TT1000-10 TT1000-13 TT1000-16 TT1000-19 |
TT1000-7-48 TT1000-8-48 TT1000-10-48 TT1000-13-48 TT1000-16-48 TT1000-19-48 |
0.620″ – 0.778″ (15.7 – 19.8mm) 0.655″ – 0.826″ (16.6 – 21.0mm) 0.717″ – 0.875″ (18.2 – 22.2mm) 0.800″ – 0.935″ (20.3 – 23.7mm) 0.860″ – 0.977″ (21.8 – 24.8mm) 0.906″ – 1.000″ (23.0 – 25.4mm) |
3/4″ | 80-40125N100 | 80-40125C100 |
| 1-1/4″ (31.8mm) |
7 8-9 10-12 13-15 16-18 19-24 |
TT1250-7 TT1250-8 TT1250-10 TT1250-13 TT1250-16 TT1250-19 |
TT1250-7-48 TT1250-8-48 TT1250-10-48 TT1250-13-48 TT1250-16-48 TT1250-19-48 |
0.870″ – 1.028″ (22.1 – 26.1mm) 0.905″ – 1.076″ (23.0 – 27.3mm) 0.967″ – 1.125″ (24.6 – 28.6mm) 1.050″ – 1.185″ (26.7 – 30.1mm) 1.110″ – 1.227″ (28.2 – 31.2mm) 1.156″ – 1.250″ (29.4 – 31.8mm) |
1″ | 80-40125N125 | 80-40125C125 |
| 1-1/2″ (38.1mm) |
7 8-9 10-12 13-15 16-18 19-24 |
TT1500-7 TT1500-8 TT1500-10 TT1500-13 TT1500-16 TT1500-19 |
TT1500-7-48 TT1500-8-48 TT1500-10-48 TT1500-13-48 TT1500-16-48 TT1500-19-48 |
1.120″ – 1.275″ (28.4 – 32.5mm) 1.155″ – 1.326″ (29.3 – 33.7mm) 1.217″ – 1.375″ (30.9 – 34.9mm) 1.300″ – 1.435″ (33.0 – 36.4mm) 1.360″ – 1.477″ (34.5 – 37.5mm) 1.406″ – 1.500″ (35.7 – 38.14mm) |
1″ | 80-40200N150 | 80-40200C150 |
| 1-3/4″ (44.5mm) |
7 8-9 10-12 13-15 16-18 19-24 |
TT1750-7 TT1750-8 TT1750-10 TT1750-13 TT1750-16 TT1750-19 |
TT1750-7-48 TT1750-8-48 TT1750-10-48 TT1750-13-48 TT1750-16-48 TT1750-19-48 |
1.370″ – 1.528″ (34.8 – 38.8mm) 1.405″ – 1.576″ (35.7 – 40.0mm) 1.467″ – 1.625″ (37.3 – 41.3mm) 1.550″ – 1.685″ (39.4 – 42.8mm) 1.610″ – 1.727″ (40.9 – 43.9mm) 1.656″ – 1.750″ (42.1 – 44.5mm) |
1″ | 80-40200N175 | 80-40200C175 |
| 2″ (50.8mm) |
7 8-9 10-12 13-15 16-18 19-24 |
TT2000-7 TT2000-8 TT2000-10 TT2000-13 TT2000-16 TT2000-19 |
TT2000-7-48 TT2000-8-48 TT2000-10-48 TT2000-13-48 TT2000-16-48 TT2000-19-48 |
1.620″ – 1.778″ (41.1 – 45.2mm) 1.655″ – 1.826″ (42.0 – 46.4mm) 1.717″ – 1.875″ (43.6 – 47.6mm) 1.800″ – 1.935″ (45.7 – 49.1mm) 1.860″ – 1.977″ (47.2 – 50.2mm) 1.906″ – 2.000″ (48.4 – 50.8mm) |
1″ | 80-40200N200 | 80-40200C200 |
*O-Ring number P8309-225 is supplied with all Collet Sets. Elliott highly recommends using P8788 Spear Lubricant with your spears to greatly increase spear life.
