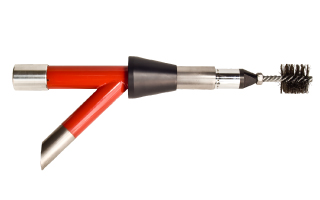

Soot Buster

Firetube Boiler Tube Cleaning System

Overview      Results Report      Specifications      Operating Manual

Soot Buster Specifications

Soot Buster

Tube OD Range

1-1/4″ to 4″ OD
(31.8 to 101.6mm)

Soot Buster Specifications

Tube OD BWG ID Range Brush OD Brush Part Number Soot Buster Package Air Requirement
1-1/4″
(31.8mm)		 13-16 1.060″ – 1.120″ 1-1/8″
(28.6mm)		 26B10 M5784-01 13-15 cfm*
80 psi (5.5 bar)**
1-1/4″
(31.8mm)		 19-26 1.166″ – 1.214″ 1-1/4″
(31.8mm)		 26B11 M5784-01 13-15 cfm*
80 psi (5.5 bar)**
1-1/2″
(38.1mm)		 13-16 1.310″ – 1.370″ 1-3/8″
(34.9mm)		 26B12 M5784-01 13-15 cfm*
80 psi (5.5 bar)**
1-1/2″
(38.1mm)		 19-26 1.416″ – 1.464″ 1-1/2″
(38.1mm)		 26B13 M5784-02 16-20 cfm*
100 psi (7 bar)**
1-3/4″
(44.5mm)		 13-16 1.560″ – 1.620″ 1-5/8″
(41.3mm)		 26B14 M5784-02 16-20 cfm*
100 psi (7 bar)**
1-3/4″
(44.5mm)		 19-26 1.666″ – 1.714″ 1-3/4″
(44.5mm)		 26B15 M5784-02 16-20 cfm*
100 psi (7 bar)**
2″
(50.8mm)		 7-14 1.640″ – 1.834″ 1-7/8″
(47.6mm)		 26B16 M5784-02 16-20 cfm*
100 psi (7 bar)**
2″
(50.8mm)		 15-26 1.856″ – 1.964″ 2″
(50.8mm)		 26B17 M5784-00 23-25 cfm*
100 psi (7 bar)**
2-1/4″
(57.2mm)		 7-14 1.890″ – 2.084″ 2-1/8″
(53.9mm)		 26B18 M5784-00 23-25 cfm*
100 psi (7 bar)**
2-1/4″
(57.2mm)		 15-26 2.106″ – 2.214″ 2-1/4″
(57.2mm)		 26B19 M5784-00 23-25 cfm*
100 psi (7 bar)**
2-1/2″
(63.6mm)		 7-14 2.140″ – 2.334″ 2-3/8″
(60.4mm)		 26B20 M5784-00 23-25 cfm*
100 psi (7 bar)**
2-1/2″
(63.6mm)		 15-26 2.356″ – 2.464″ 2-1/2″
(63.5mm)		 26B21 M5784-00 23-25 cfm*
100 psi (7 bar)**
2-3/4″
(70.0mm)		 7-14 2.390″ – 2.584″ 2-5/8″
(66.8mm)		 26B22 M5784-00 23-25 cfm*
100 psi (7 bar)**
2-3/4″
(70.0mm)		 15-26 2.606″ – 2.714″ 2-3/4″
(69.9mm)		 26B23 M5784-00 23-25 cfm*
100 psi (7 bar)**
3″
(76.3mm)		 7-14 2.640″ – 2.834″ 2-7/8″
(73.0mm)		 26B24 M5784-00 23-25 cfm*
100 psi (7 bar)**
3″
(76.3mm)		 15-26 2.856″ – 2.964″ 3″
(76.2mm)		 26B25 M5784-00 23-25 cfm*
100 psi (7 bar)**
3-1/4″
(82.6mm)		 7-14 2.890″ – 3.084″ 3-1/8″
(79.4mm)		 26B26 M5784-03 25-28 cfm*
80 psi (5.5 bar)**
3-1/4″
(82.6mm)		 15-26 3.106″ – 3.214″ 3-1/4″
(82.6mm)		 26B27 M5784-03 25-28 cfm*
80 psi (5.5 bar)**
3-1/2″
(88.9mm)		 7-14 3.140″ – 3.334″ 3-3/8″
(85.7mm)		 26B28 M5784-03 25-28 cfm*
80 psi (5.5 bar)**
3-1/2″
(88.9mm)		 15-26 3.356″ – 3.464″ 3-1/2″
(88.9mm)		 26B29 M5784-03 25-28 cfm*
80 psi (5.5 bar)**
3-3/4″
(95.3mm)		 7-14 3.390″ – 3.584″ 3-5/8″
(92.1mm)		 26B30 M5784-03 25-28 cfm*
80 psi (5.5 bar)**
3-3/4″
(95.3mm)		 15-26 3.606″ – 3.714″ 3-3/4″
(95.3mm)		 26B31 M5784-03 25-28 cfm*
80 psi (5.5 bar)**
4″
(101.6mm)		 7-14 3.640″ – 3.834″ 3-7/8″
(98.4mm)		 26B32 M5784-03 25-28 cfm*
80 psi (5.5 bar)**
4″
(101.6mm)		 15-26 3.856″ – 3.964″ 4″
(101.6mm)		 26B33 M5784-03 25-28 cfm*
80 psi (5.5 bar)**

*+/- 5%
**Actual volume required- not the cfm stated on the compressor

Soot Buster Kits

Soot Buster Kits Include:

  • Air Pulsator
  • Foot Control Valve
  • Filter-Lubricator with Gauge
  • Y-Tube for Vacuum Hose
  • 33′ (10M) Air Hose
  • 33′ (10M) Heavy Duty Pulsator Motor Hose
  • 16.5′ (5M) Filter-Lubricator Air Hose

Spares & Accessories

Vacuums

Part Number Description
08520 110V/60Hz, 115 CFM for dry or wet service 20 gallon capacity, 13 Amps, 2 HP, 08522 10′ suction hose included
08520-220 220V/50Hz, 115 CFM for dry or wet service 20 gallon capacity, 7 Amps, 2 HP, 08522 10′ suction hose included
08510 Paper Filter Bag (3 per pack)
08509 Cloth Filter Bag
08511 Canvas Filter Bag

Suction Hoses

Part Number Description
08540 10 feet (3.0M) long – 2″ (50.8mm Diameter. Includes 2″ Hose to 1-1/2″ Tool Cuff
08542 25 feet (7.6M) long – 2″ (50.8mm Diameter. Includes 2″ Hose to 1-1/2″ Tool Cuff
