Roto-Jet Specifications

Roto-Jet I

Roto-Jet II

Pneumatic Roto-Jet

Tube ID Range

0.275″ to 3.000″
(6.99 – 76.2mm)

0.275″ to 1.000″
(6.99 – 25.4mm)

0.275″ to 3.000″
(6.99 – 76.2mm)

Application

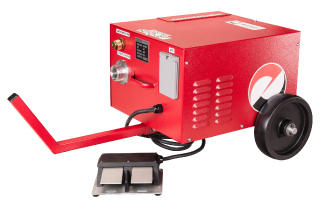

Ideal for mechanical contractors that perform tube cleaning on a regular basis. Equipped with a 1 HP motor, these cleaners are powerful yet simple to use due to their reversing capability.

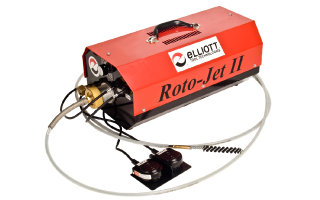

Recommended for operating sites such as hospitals, schools, and other institutions that perform tube cleaning on a periodic basis. Equipped with a 1/2 HP motor, these cleaners are economical and reversible, making them easy to operate and handle.

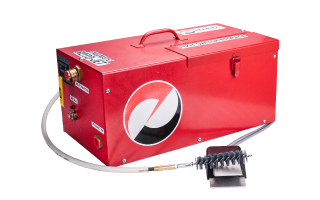

With a powerful 4 HP motor, this pneumatic cleaner is great for locations where electricity is not readily available. It is perfect for power utility plants and paper, steel, and sugar mills.

Specifications

System Part Number Voltage/Air Requirements Reversible RPM
Roto-Jet I 0620AR 110V Yes 850
Roto-Jet I 0820AR 220V Yes 850
Roto-Jet II 0650R 110V Yes 0 – 1800
Roto-Jet II 0750R 220V Yes 0 – 1800
Pneumatic Roto-Jet 0420 138 CFM @ 100 PSI No 0 – 2500

Weight

63 lbs
(29 Kg)

63 lbs
(29 Kg)

35 lbs
(16 Kg)

Dimensions

17″ x 15″ x 10.5″
(43.2 x 38.1 x 26.7 cm)

11″ x 20″ x 9″
(28.0 x 50.8 x 22.9 cm)

21.5″ x 10.25″ x 10.5″
(54.6 x 26.1 x 26.7 cm)

Flexible Shafts

Dry Shaft

Commonly used in firetube boilers and sugar mill cleaning.

Tube ID Shaft Length Part Number Break-Away Coupling
1.000″ +
(25.4mm)		 15ft (4.5m) 053415 0508
1.000″ +
(25.4mm)		 25ft (7.6m) 053425 0508
1.000″ +
(25.4mm)		 35ft (10.7m) 053435 0508
1.000″ +
(25.4mm)		 50ft (15.2m) 053450 0508

Wet Shaft

Commonly used in chillers, watertube boilers, and other applications where water does not inhibit cleaning. Never operate wet shafts without water flushing through the shaft’s casing.

Wet Shaft (15ft)

Tube ID Part Number Case Diameter Break-Away Coupling
0.275″ – 0.375″
(6.99 – 10mm)		 051115 0.250″ (6mm) 3/4″ (19mm)
0.437″ – 0.500″
(11 – 13mm)		 051215 0.375″ (10mm) 0501
0.562″ – 1.000″
(14 – 25mm)		 051315 0.500″ (13mm) 0501
0.750″ – 1.500″
(19 – 38mm)		 0514A15 0.625″ (16mm)
1.000″ – 2.000″
(25 – 50mm)		 051415 0.750″ (19mm)
2.000″ +
(50mm +)		 051515 1.000″ (25mm)

Wet Shaft (25ft)

Tube ID Part Number Case Diameter Break-Away Coupling
0.275″ – 0.375″
(6.99 – 10mm)		 051125 0.250″ (6mm) 3/4″ (19mm)
0.437″ – 0.500″
(11 – 13mm)		 051225 0.375″ (10mm) 0501
0.562″ – 1.000″
(14 – 25mm)		 051325 0.500″ (13mm) 0501
0.750″ – 1.500″
(19 – 38mm)		 0514A25 0.625″ (16mm)
1.000″ – 2.000″
(25 – 50mm)		 051425 0.750″ (19mm)
2.000″ +
(50mm +)		 051525 1.000″ (25mm)

Wet Shaft (35ft)

Tube ID Part Number Case Diameter Break-Away Coupling
0.275″ – 0.375″
(6.99 – 10mm)		 051135 0.250″ (6mm) 3/4″ (19mm)
0.437″ – 0.500″
(11 – 13mm)		 051235 0.375″ (10mm) 0501
0.562″ – 1.000″
(14 – 25mm)		 051335 0.500″ (13mm) 0501
0.750″ – 1.500″
(19 – 38mm)		 0514A35 0.625″ (16mm)
1.000″ – 2.000″
(25 – 50mm)		 051435 0.750″ (19mm)
2.000″ +
(50mm +)		 051535 1.000″ (25mm)

Wet Shaft (50ft)

Tube ID Part Number Case Diameter Break-Away Coupling
0.275″ – 0.375″
(6.99 – 10mm)		 051150 0.250″ (6mm) 3/4″ (19mm)
0.437″ – 0.500″
(11 – 13mm)		 051250 0.375″ (10mm) 0501
0.562″ – 1.000″
(14 – 25mm)		 051350 0.500″ (13mm) 0501
0.750″ – 1.500″
(19 – 38mm)		 0514A50 0.625″ (16mm)
1.000″ – 2.000″
(25 – 50mm)		 051450 0.750″ (19mm)
2.000″ +
(50mm +)		 051550 1.000″ (25mm)

Spares & Accessories

    • Break-Away Coupling
    • Solid Coupling: 0502-10
    • Drive Coupling
    • Tool Coupling
    • Flexible Shaft Repair Kit Includes: 3 Coupling Adapters, 3 Tool Couplings, Brass Coupling, 3 Shaft Washers, 1 Male Connector, 3 O Rings, Crimping Block (on K1 kits only)

Brushes

0942 Stainless

Deposit: Light Scale
Tube: Non-Ferrous, Prime
Cleaning Type: Wet

0942B Brass

Deposit: Light Scale
Tube: Non-Ferrous, Prime
Cleaning Type: Wet

5508 Turbo

Deposit: Light Scale
Tube: Non-Ferrous, Ferrous, Enhanced
Cleaning Type: Wet

5510 Turbo

Deposit: Light Scale
Tube: Non-Ferrous, Ferrous, Prime
Cleaning Type: Wet

0954 Flex Hones

Deposit: Light Scale
Tube: Ferrous, Prime
Cleaning Type: Wet

5502 HD Nylon

Deposit: Medium to Heavy Mud
Tube: Ferrous, Non-Ferrous, Prime
Cleaning Type: Wet

0904 Steel Wire

Deposit: Light (Soot) Scale
Tube: Ferrous, Prime
Cleaning Type: Dry

5513 Turbo

Deposit: Light to Medium Scale
Tube: Ferrous, Non-Ferrous, Prime
Cleaning Type: Wet

0946 Descale No Drill

Deposit: Medium Scale
Tube: Ferrous, Prime
Cleaning Type: Wet or Dry

0947 Descale With Drill

Deposit: Medium Scale
Tube: Ferrous, Prime
Cleaning Type: Wet

Brush Diameter Shaft Size 0942 Stainless 0942B Brass 5508 Turbo 5510 Turbo 0954 Flex Hone 5502 HD Nylon 5513 Turbo 0904 Steel Wire
0.250″
(6.35mm)		 0511 0942250 0942B250 5502-250
0.312″
(7.92mm)		 0511 0942312 0942B312 5502-312
0.375″
(9.53mm)		 0511 0942375 0942B375 5502-375
0.437″
(11.10mm)		 0512  0942437 0942B437 5508-12 0954-437 5502-437
0.500″
(12.70mm)		 0512 0942500 0942B500 5508-12 5510-8 0954-500 5502-500
0.562″
(14.27mm)		 0513 0942562 0942B562 5508-12 0954-562 5502-562
0.625″
(15.88mm)		 0513 0942625 0942B625 5508-16 0954-625 5502-625
0.687″
(17.45mm)		 0513 0942687 0942B687 5508-16 0954-687 5502-687
0.750″
(19.05mm)		 0513 0942750 0942B750 5508-16 5510-12 0954-750 5502-750 0904750
0.812″
(20.62mm)		 0513 0942812 0942B812 5508-18 5502-812
0.875″
(22.22mm)		 0513 0942875 0942B875 5508-18 0954-875 5502-875
0.937″
(23.80mm)		 0513 0942937 0942B937 5508-18 5502-937
1.000″
(25.40mm)		 0514 & 0534 (Dry) 09421000 0942B1000 5508-18 5510-16 0954-1000 5502-1000 09041000
1.062″
(26.97mm)		 0514 & 0534 (Dry) 09421062 0942B1062
1.125″
(28.58mm)		 0514 & 0534 (Dry) 09421125 0942B1125 5510-18
1.187″
(30.15mm)		 0514 & 0534 (Dry) 09421187 0942B1187
1.250″
(31.75mm)		 0514 & 0534 (Dry) 09421250 0942B1250 5510-20 09041250
1.312″
(33.32mm)		 0514 & 0534 (Dry) 09421312 0942B1312
1.437″
(36.50mm)		 0514 & 0534 (Dry) 09421437 0942B1437
1.500″
(38.10mm)		 0514 & 0534 (Dry) 0942B1500 0942B1500 5513-24 09041500
1.750″
(38.10mm)		 0514 & 0534 (Dry) 5513-28 09041750
2.000″
(50.80mm)		 0514 & 0534 (Dry) 5513-32 09042000
2.250″
(57.15mm)		 0514 & 0534 (Dry) 09042250
2.500″
(63.50mm)		 0514 & 0534 (Dry) 09042500
2.750″
(69.85mm)		 0514 & 0534 (Dry) 09042750
3.000″
(76.20mm)		 0514 & 0534 (Dry) 09043000
3.250″
(82.55mm)		 0514 & 0534 (Dry) 09043250
3.500″
(88.90mm)		 0514 & 0534 (Dry) 09043500
3.750″
(57.15mm)		 0534 (Dry) 09043750
4.000″
(101.60mm)		 0534 (Dry) 09044000
4.500″
(114.30mm)		 0534 (Dry) 09044500
5.000″
(127.00mm)		 0534 (Dry) 09045000
5.500″
(127.00mm)		 0534 (Dry) 09045500
6.000″
(152.40mm)		 0534 (Dry) 09046000
Tube ID Descaling Tool Descaling Tool w/ Drill Tip Blade Refills Recommended Shaft
0.312″ – 0.375″
(7.92 – 9.53mm)		 09461 09471 0946RF2 0511
0.375″ – 0.500″
(9.53 – 12.70mm)		 09462 09472 0946RF2 0512
0.500″ – 0.625″
(12.70 – 15.88mm)		 09463 09473 0946RF3 0513
0.625″ – 1.000″
(15.88 – 25.40mm)		 09464 09474 0946RF4 0514A
1.000″ – 3.000″
(25.40 – 76.20mm)		 09465 09475 0946RF5 0514
