430G Specifications
Tube OD Range
0.250″ to 3.000″
(6.4 to 76.2mm)

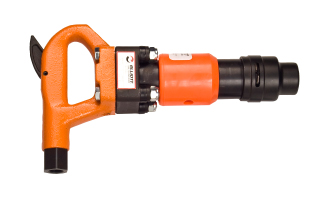

Pneumatic Hammer Package
Pneumatic Hammer
Hose Whip
Filter-Lubricator
Carrying Case
Specifications
Piston Diameter & Stroke: 1-1/8″ x 2″ (28.6 x 50.8mm)
Length: 14″ (355.6mm)
Blows per minute: 2,300
Net Weight: 17lbs (7kg)
Air Requirement: 30 CFM @ 90PSI
Hose Diameter: 1/2″ (12.7mm)
Spares & Accessories
6070 Filter-Lubricator (Included in 430G Package)
Flaring Tools
Beading Tools
Knockout Tools
Collapsing Tools
| Part Number | Description |
|---|---|
| 5371CL | Lexan Shield (Requires 537058 Shield Adapter) |
| P5370N15 | Hose 15′ (4.5M) Long |
| P5370N25 | Hose 25′ (7.6M) Long |
| P5370N50 | Hose 50′ (15.2M) Long |
| P5370N100 | Hose 100′ (30.5M) Long |
Beading Tools
| Radius For Pneumatic | Bead Inches | BWG |
|---|---|---|
| 75-456 | 9/64 (3.6mm) | 13 and lighter |
| 75-456S | 3/16 (4.8mm) | 10, 11, 12 |
| 75-456A | 7/32 (5.6mm) | 8, 9 |
The standard Type No 1 shank is 0.680″ (17.3mm) diameter by 2-3/8″ (60.3mm) long.
Flaring Tools
| Tube Size | Part No. |
|---|---|
| 1/4″ – 3/8″ (6.35 – 9.53mm) |
8498D |
| 7/16″ – 1″ (11.11 – 25.4mm) |
8498 |
| 1″ – 1-1/2″ (25.45 – 38.1mm) |
8498A |
| 1-5/8″ – 2″ (41.28 – 50.8mm) |
8498B |
The standard Type No 6 shank is 0.680″ (17.3mm) diameter by 2-3/8″ (60.3mm) long with an oval collar.
Knockout Tools
| Tube OD | BWG | Part # |
|---|---|---|
| 1/2″ (12.7mm) |
15 16 17 18 19 20 |
8496-29T6 8496-30T6 8496-31T6 8496-32T6 8496-33T6 8496-34T6 |
| 5/8″ (15.9mm) |
10 11 12 13 14 15 16 17 18 19 20 |
8496-45T6 8496-46T6 8496-47T6 8496-48T6 8496-49T6 8496-50T6 8496-51T6 8496-52T6 8496-53T6 8496-54T6 8496-55T6 |
| 3/4″ (19.17mm) |
8 9 10 11 12 13 14 15 16 17 18 19 20 |
8496-87T6 8496-88T6 8496-89T6 8496-90T6 8496-91T6 8496-92T6 8496-93T6 8496-94T6 8496-95T6 8496-96T6 8496-97T6 8496-98T6 8496-99T6 |
| 1″ (25.4mm) |
10 11 12 13 14 15 16 17 18 |
8496-102T6 8496-103T6 8496-104T6 8496-105T6 8496-106T6 8496-107T6 8496-108T6 8496-109T6 8496-110T6 |
The standard Type No 6 shank is 0.680″ (17.3mm) diameter by 2-3/8″ (60.3mm) long with a retainer. Other style shanks are available by request.
Collapsing Tools
| Tube OD | Part Number | Max Sheet |
|---|---|---|
| 3/8″ (9.5mm) |
8637-6T6 | 1-3/4″ (44.45mm) |
| 1/2″ (12.7mm) |
8637-8T6 | 2-1/2″ (63.5mm) |
| 5/8″ (15.8mm) |
8637-10T6 | 2-1/2″ (63.5mm) |
| 3/4″ (19.1mm) |
8637-12T6 | 2-5/8″ (66.7mm) |
| 7/8″ (22.2mm) |
8637-14T6 | 2-3/4″ (69.9mm) |
| 1″ (25.4mm) |
8637-16T6 | 3″ (76.2mm) |
| 1-1/8″ (28.6mm) |
8637-18T6 | 3-1/4″ (82.6mm) |
| 1-1/4″ (31.8mm) |
8637-20T6 | 3-1/4″ (82.6mm) |
| 1-3/8″ (34.9mm) |
8637-22T6 | 3-1/4″ (82.6mm) |
| 1-1/2″ (38.1mm) |
8637-24T6 | 3-1/4″ (82.6mm) |
| 1-5/8″ (41.3mm) |
8637-26T6 | 3-3/8″ (85.7mm) |
| 1-3/4″ (44.5mm) |
8637-28T6 | 3-1/2″ (88.9mm) |
| 1-7/8″ (47.6mm) |
8637-30T6 | 4″ (101.6mm) |
| 2″ (50.8mm) |
8637-32T6 | 4-1/4″ (108.0mm) |
The standard Type No 6 shank is 0.680″ (17.3mm) diameter by 2-3/8″ (60.3mm). Other style shanks are available upon request.
