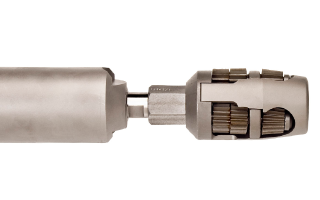

Pipe Rattling Equipment

Oil Field Pipeyard Cleaning Motors & Heads

Pipe Rattling Equipment Specifications

Tube OD Range

2.375″ to 20.00″
(60.3 – 508.00mm)

Pipe Rattling Equipment Kits

Air Motor
Motor Sleeve (where applicable)
Wrench
Cutter Head
Head Coupling
2 Sets of replacement cutters
2 Sets of replacement cutter pins

Spares & Accessories

Operating Hose: Highly recommended for proper operation and long life.
6055 Lubricator: Highly recommended for proper operation and long life.
Foot Valve
Replacement Cutters, Cutter Pins, & Arms
Motor Paddles & Rotors

Rattling Kits & Accessories

Outside Diameter Pipe or Casing Part Number Operating Hose
25′ (7.6m)
Operating Hose
50′ (15.2m)
Foot Valve
2.375″
(60.3mm)
20308K 1006-25 1006-50 720700B
2.875″
(73.0mm)
20708K 835100-25 835100-50 720700B
3.500″
(88.9mm)
30102K 835300-25 835300-50 720700B
4.500″
(114.3mm)
40102K* 835300-25 835300-50 720700B
5.000″ & 5.500″
(127.0 – 139.7mm)
50000K 835300-25 835300-50 720700B
7.000″
(177.8mm)
70000K* 835300-25 835300-50 720700B
7.625″
(193.7mm)
70508K* 835300-25 835300-50 720700B
8.625″
(219.1mm)
80508K* 835300-25 835300-50 720700B
9.625″
(244.5mm)
90508K* 835300-25 835300-50 720700B
10.750″
(273.1mm)
100304K* 835300-25 835300-50 720700B
11.750″
(298.5mm)
110304K* 835400-25 835400-50
13.375″
(339.7mm)
130308K* 835400-25 835400-50
20.000″
(508.0mm)
200000K* 835400-25 835400-50

* Kit also includes Motor Sleeve

Contact us for more information or to request a quote.
