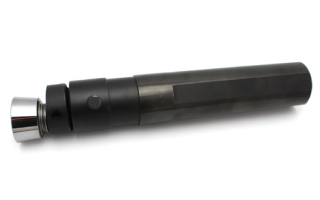

ID/OD Carbide Roll Burnishing Specifications
S2320-00
S2320A00
S2289-00
Roll Diameter
1.750”
(44.45mm)
1.750”
(44.45mm)
1.188”
(30.18mm)
Radius
0.032”
(0.813mm)
Overall Length
12”
(305mm)
18”
(457mm)
9.5”
(241.3mm)
Burnishing Design
Parts with 2.25” minimum ID and up to 8” – 9” deep
Parts with 2.25” minimum ID and up to 14” – 15” deep
Parts with 1.375” – 2.25” bore diameter and up to 3” deep
*Also available with a .062” radius roll (CB127-00) or with a .093” radius roll (S2340-00).
Part Preparations
100-120 RMS
Feed Rate
0.004”/0.008”
Speed
400-800 SFM (1,200 Max)
Coolant Required
Water Soluble Or Oil
For more information about metal finishing tools visit monaghantooling.com.
Monaghan Tooling Group is Elliott’s exclusive marketing and sales rep for our precision metal finishing tools.
