Torq N’ Seal®

Mechanical Tube Plugs

Most Secure Method To Plug Leaky Tubes.

Elliott’s Torq N’ Seal Mechanical Tube Plugs create a positive mechanical contact seal in excess of 6,500 PSI (448.2 bar), making them ideal for high or medium pressure applications.

  • Tube Size: 0.410″ to 1.000″ (10.4 to 25.4mm) ID

  • ASME PCC-2-2015 Compliant

  • Maximum Pressure: 6,500 PSI

  • Materials: Brass, Steel, Stainless, Titanium, and more.

  • Comprehensive Testing and Quality Assurance Standards.

  • Easy To Install- No Hydraulic Equipment Needed.

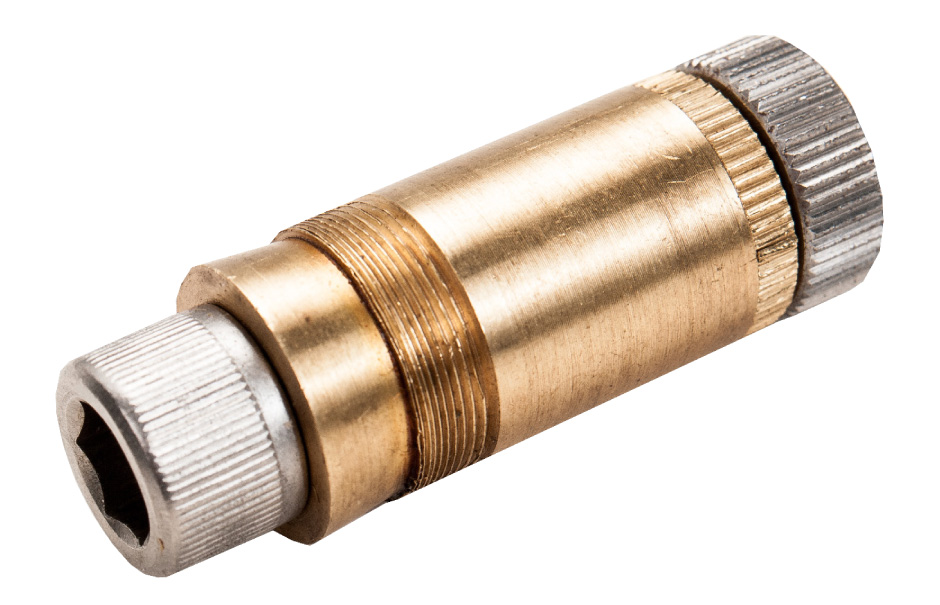

Mechanical Tube Plugs

Install And Remove Elliott’s Mechanical Tube Plug Quickly & Easily

Available in a wide range of materials to suit your needs.

It is good practice to install plugs that are the same as or a compatible material to the tube being plugged. Elliott’s Torq N’ Seal Tube Plugs are available in brass, carbon steel, stainless steel, titanium, monel and copper nickel.

Expands In Tube

Can be installed into hard to reach areas.

Peace Of Mind

Most secure method to plug leaky tubes. No welding required.

Low Investment

No expensive capital equipment required.

Protects The Tube Sheet

Wide sealing zone ensures a positive seal with a gradual and symmetrical torque expansion – Eliminates thermal and mechanical shock to the tube sheet.

Quality Assurance.

Tested to meet or exceed all of the following industry standards.

  • ASME B31.3

  • ASME Section VII Division 1

  • CSA B51

  • CSA Z662

  • TEMA

  • Nuclear Class 3 and Balance-Of-Plant Certification for CANDU power stations.

  • CAN/CSA 285.0 6.1.6 Cat H

  • ASME PCC-2-2015

  • ISO-9001:2008 Standards for

    • ASME Section VII

    • API 660

    • Alberta (ABSA)

    • Ontario (TSSA)

  • ASME Section III Nuclear

    • 10 CFR 50 Appendix B

    • ANSI N45.2

    • Ontario (TSSA)

Read The Comprehensive Testing Report

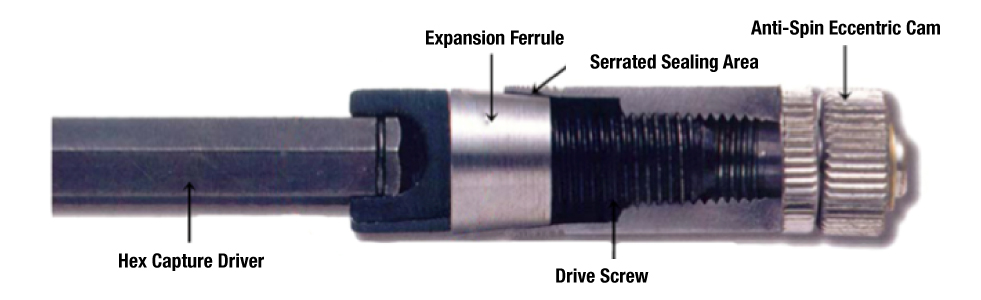

Elliott’s Torq N’ Seal creates a positive mechanical seal.

Elliott Recommends Venting Your Tube Prior To Plugging.

Elliott recommends puncturing the leaky tube with a One-Revolution Tube Cutter. This will ensure the tube is properly vented prior to plugging.

Tube Venting
Tube Venting Article
Learn More About The One-Rev Cutter
Learn More About Tube Venting
Contact us for more information or to request a quote.
