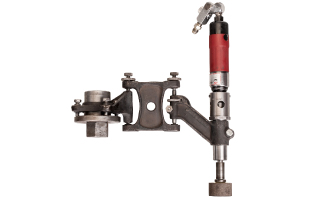

Hand Hole Seat Grinder

Hand Hole Seat Grinder Specifications

Seat Width

0.187″ to 0.656″
(4.8 – 16.7mm)

7099-1 Hand Hole Seat Grinder Package

Hand hold grinding assembly with pneumatic motor
Filter-Lubricator
Shut-off Valve
Hose Whip
Inspection Mirror
Set of Wrenches
Set of 4 Guide Rollers
Carrying Case

Specifications

RPM: 5,000 @ 90 PSI
Weight: 30 lbs (13.6 kg)
Hose Connection: 1/4 NPT
Hose Size: 5/16″ (7.92mm)

Spares & Accessories

Grinding Wheels

Cup Brushes

702636 Extension Link:

Used to extend reach beyond 11-1/2″ (292.1mm)

P7026-9 Wheel Dresser:

Used for restoring the grinding surface of the grinding wheel.

Seat Width Guide Roller Coarse Grinding Wheels Fine Grinding Wheels Cup Brush Wheel & Brush
Diameter
0.187″
(4.75mm)
702628-3 7026-21 7026-22 702630 2.00″
(50.80mm)
0.218″
(5.54mm)
702628-2 7026-21 7026-22 702630 2.00″
(50.80mm)
0.250″
(6.35mm)
702628 7026-21 7026-22 702630 2.00″
(50.80mm)
0.281″
(7.14mm)
702628-1 7026-21 7026-22 702630 2.00″
(50.80mm)
0.312″
(7.92mm)
702628-3 7026-23 7026-24 702830-1 2.25″
(57.15mm)
0.343″
(8.71mm)
702628-2 7026-23 7026-24 702830-1 2.25″
(57.15mm)
0.375″
(9.53mm)
702628 7026-23 7026-24 702830-1 2.25″
(57.15mm)
0.406″
(10.31mm)
702628-1 7026-23 7026-24 702830-1 2.25″
(57.15mm)
0.437″
(11.10mm)
702628-3 7026-25 7026-26 702830-2 2.50″
(63.50mm)
0.468″
(11.89mm)
702628-2 7026-25 7026-26 702830-2 2.50″
(63.50mm)
0.500″
(12.70mm)
702628 7026-25 7026-26 702830-2 2.50″
(63.50mm)
0.531″
(13.49mm)
702628-1 7026-25 7026-26 702830-2 2.50″
(63.50mm)
0.562″
(14.27mm)
702628-3 7026-27 7026-28 702830-3 2.75″
(69.85mm)
0.593″
(15.06mm)
702628-2 7026-27 7026-28 702830-3 2.75″
(69.85mm)
0.625″
(15.88mm)
702628 7026-27 7026-28 702830-3 2.75″
(69.85mm)
0.656″
(16.66mm)
702628-1 7026-27 7026-28 702830-3 2.75″
(69.85mm)
