Grooving (Serrating) Tool Specifications
Tube OD Range
0.375” to 3.000”
(9.5 – 76.2mm) OD

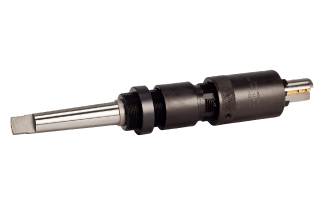

Grooving Tool Package
GT Series Grooving Tool Includes:
Standard 1/8″ x 1/4″ x 1/8″ (3.0 x 6.4 x 3.0mm) Cutter Bit
Spares & Accessories
Cutter Bit
Available in ferrous and stainless steel in various cutter bit tooth configurations
Mandrel
| Size | Grooving Tool | Mandrel | Morse Taper |
|---|---|---|---|
| 3/8″ (9.5mm) |
GT375 | GT375-03 | 3 |
| 1/2″ (12.7mm) |
GT500 | GT500-03 | 3 |
| 5/8″ (15.9mm) |
GT625 | GT625-03 | 3 |
| 3/4″ (19.1mm) |
GT750 | GT750-03 | 3 |
| 7/8″ (22.2mm) |
GT875 | GT875-03 | 3 |
| 1″ (25.4mm) |
GT1000 | GT1000-03 | 3 |
| 1-1/4″ (31.8mm) |
GT1250 | GT1250-03 | 3 |
| 1-1/2″ (38.1mm) |
GT1500 | GT1500-03 | 4 |
| 1-3/4″ (44.5mm) |
GT1750 | GT1750-03 | 4 |
| 2″ (50.8mm) |
GT2000 | GT2000-03 | 4 |
| 2-1/2″ (63.5mm) |
GT2500 | GT2500-03 | 4 |
| 3″ (76.2mm) |
GT3000 | GT3000-03 | 4 |

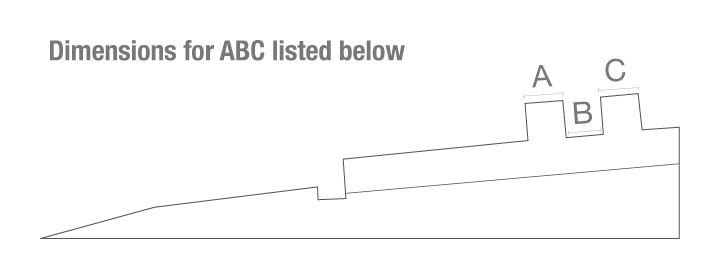

Grooving Tool Blades
| GT375 | GT500 | GT625 – GT3000 | A | B | C |
|---|---|---|---|---|---|
| GT375-31-3 | GT500-31-3 | GT100-31-3* | 1/8″ | 1/4″ | 1/8″ |
| GT375-31-4 | GT500-31-4 | GT100-31-4* | 1/8″ | 3/8″ | 1/8″ |
Note: GT375-31 and GT500-31 blades work on ferrous and stainless steel materials
* Add an “S” to the end for stainless steel blades.
