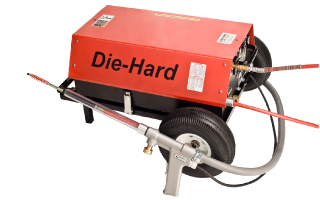

Die-Hard™ Specifications
Tube OD Range
3/4″ & 1″ OD
(19.5 – 25.4mm)
Specifications
110/1/60 electric, 14 amps
0.5 GPM water consumption
10 pulses/second ~800 PSI
Hydro powered brush actuator
Die-Hard™ Package
M5801-00 Die-Hard™ Cleaner Package Includes:
- Auto-Feed Pump Unit
- 45ft (13.7m) Auto-Feed Hose, includes Auto-Feed Casing
- Trigger Switch Feed Gun Assembly, includes Trigger Switch Feed Gun and 3/4″ (19.1mm) and 1″ (25.4mm) Gun Nozzles
- Actuator (0.520″ OD)
- Antifreeze with Adapter
- 3/8″ – 7/16″ Combination Wrenches
- Brushes sold separately
Spares & Accessories
- Detachable Contractor Dolly
- Rocker Style Footswitch
- Tool Box Expansion Tray
- Antifreeze with Adapter
- Trigger Switch Feed Gun
- Actuator
- Feed Hose: Available in 35ft and 45ft. Other sizes available.
- Auto-feed casing
- Gun Nozzle: Available in 3/4″ (19.1mm), 7/8″ (22.23mm), and 1″ (25.4mm).
- Tube Hole Gauge: 3/4″ and 1″
Spares Kit (M5803-00) Includes:
A toolbox, five nylon brushes of 20 different sizes for 3/4″ and 1″ tubes, and a 0.5 gallon of antifreeze with an adapter. For 7/8″ applications Elliott offers the M5803-00-875 Spare Brush Kit that includes five nylon brushes of five different sizes.
Brushes
| Tube ID | Brush Diameter | Single Brush | 25 Pack |
|---|---|---|---|
| 0.530″ – 0.544″ (13.46 – 13.82mm) |
0.530″ | 5535-530 | 5535-530PK |
| 0.545″ – 0.559″ (13.84 – 14.20mm) |
0.545″ | 5535-545 | 5535-545PK |
| 0.560″ – 0.572″ (14.22 – 14.53mm) |
0.560″ | 5535-560 | 5535-560PK |
| 0.573″ – 0.589″ (14.55 – 14.96mm) |
0.573″ | 5535-573 | 5535-573PK |
| 0.590″ – 0.607″ (14.99 – 15.42mm) |
0.590″ | 5535-590 | 5535-590PK |
| 0.608″ – 0.624″ (15.44 – 15.85mm) |
0.608″ | 5535-608 | 5535-608PK |
| 0.625″ – 0.637″ (15.88 – 16.18mm) |
0.625″ | 5535-625 | 5535-625PK |
| 0.638″ – 0.651″ (16.21 – 16.54mm) |
0.638″ | 5535-638 | 5535-638PK |
| 0.652″ – 0.665″ (16.56 – 16.89mm) |
0.652″ | 5535-652 | 5535-652PK |
| 0.666″ – 0.679″ (16.92 – 17.25mm) |
0.666″ | 5535-666 | 5535-666PK |
| 0.680″ – 0.694″ (17.27 – 17.63mm) |
0.680″ | 5535-680 | 5535-680PK |
| 0.695″ – 0.709″ (17.65 – 18.01mm) |
0.695″ | 5535-695 | 5535-695PK |
| 0.740″ – 0.754″ (18.80 – 19.15mm) |
0.740″ | 5535-740 | 5535-740PK |
| 0.755″ – 0.769″ (19.18 – 19.53mm) |
0.755″ | 5535-755 | 5535-755PK |
| 0.770″ – 0.784″ (19.56 – 19.91mm) |
0.770″ | 5535-770 | 5535-770PK |
| 0.785″ – 0.799″ (19.94 – 20.29mm) |
0.785″ | 5535-785 | 5535-785PK |
| 0.800″ – 0.819″ (20.32 – 20.80mm) |
0.800″ | 5535-800 | 5535-800PK |
| 0.820″ – 0.839″ (20.83 – 21.31mm) |
0.820″ | 5535-820 | 5535-820PK |
| 0.840″ – 0.859″ (21.34 – 21.82mm) |
0.840″ | 5535-840 | 5535-840PK |
| 0.860″ – 0.879″ (21.84 – 22.33mm) |
0.860″ | 5535-860 | 5535-860PK |
| 0.880″ – 0.899″ (22.35 – 22.83mm) |
0.880″ | 5535-880 | 5535-880PK |
| 0.900″ – 0.915″ (22.86 – 23.24mm) |
0.900″ | 5535-900 | 5535-900PK |
| 0.916″ – 0.932″ (23.27 – 23.67mm) |
0.916″ | 5535-916 | 5535-916PK |
| 0.933″ – 0.943″ (23.70 – 23.95mm) |
0.933″ | 5535-933 | 5535-933PK |
| 0.944″ – 0.956″ (23.98 – 24.28mm) |
0.944″ | 5535-944 | 5535-944PK |
For more information on sizing your Die-Hard brush, check out our selection guide.
