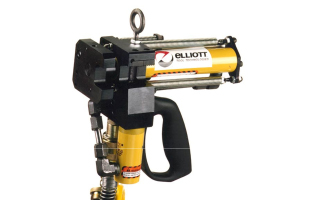

Cyclgrip

Semi-Continuous Tube Puller

Cyclgrip Specifications

Tube OD Range

0.500” to 1.000”
(12.7 – 25.4mm)

Specifications

Pulled Tube Projection Required: 3″ (76.2mm)
Face Plate Dimensions: 3.75″ (95.3mm) wide x 2.94 (74.7mm) high
Stroke Length: 5″ (127.0mm)
Pulling Rate: 10 ft/min (3.3m/min)
Height: 10.75″ (273mm)
Length: 8.44″ (214.4mm)
Width: 4.13″ (104.9mm)
Weight: 16lbs (7.3kg)

Cyclgrip Semi-Continuous Tube Puller Package

Extractor Unit
15 ft (4.6m) Hydraulic Hose
Control Cable
Carrying Case

Spares & Accessories

110V Electric Hydraulic Pump*
220V Electric Hydraulic Pump*
Counter Balance

*A pump is required to operate the Cyclgrip.

Contact us for more information or to request a quote.
