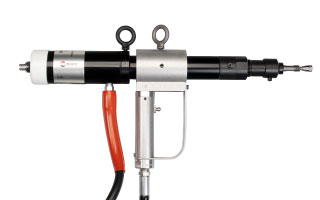

Collet Style Tube Tugger Specifications
Tube OD Range
0.625” to 1.000”
(15.9 – 25.4mm)
Specifications
Pulling Capacity: 6 Ton
Stroke: 3″ (76.0mm)
Pulling Stroke: 2.25″ (57.2mm)
Weight: 25lbs (11kg)
Retracted Length: 20.5″ (520.7mm)
Extended Length: 21.75″ (552.6mm)
Collet Style Tube Tugger Kit
- B10552 Collet Style Tube Tugger Assembly
- B10552D5-750 Collet Retainer for 5/8″ (15.9mm) and 3/4″ (19.1mm) ODs
- B10552D7-750 Pull Rod for 5/8″ (15.9mm) and 3/4″ (19.1mm) ODs
- B10552D5-1000 Collet Retainer for 7/8″ (22.2mm) and 1″ (25.4mm) ODs
- B10552D7-1000 Pull Rod for 7/8″ (22.2mm) and 1″ (25.4mm) ODs
- B10552D20 15ft (4.6m) Hydraulic Hose Assembly
Spares & Accessories
110V Electric Hydraulic Pump*
220V Electric Hydraulic Pump*
Tool Kit:
Collet Set, Draw Bar, and Nose Piece
Collet Set:
Collet, Flat Spring, and an O-Ring.
Draw Bar
Nose Piece
Counter Balance
*You must have a pump in order to operate the Collet Style Tube Tugger.
| Tube OD | BWG** | Tool Kit | Collet Set | Draw Bar | Nose Piece | Flat Spring | O-Ring |
|---|---|---|---|---|---|---|---|
| 5/8″ (15.9mm) |
18-20 | B10552-625KIT | B10552D3-625 | B10552D2-625 | B10552D4-625 | B10552D31-62 | P8309-8A |
| 3/4″ (19.1mm) |
16-20 | B10552-750KIT | B10552D3-750 | B10552D2-750 | B10552D4-750 | B10552D31-62 | P8309-8A |
| 7/8″ (22.2mm) |
16-20 | B10552-875KIT | B10552D3-875 | B10552D2-1000 | B10552D4-875 | B10552D31-87 | P8309-11 |
| 1″ (25.4mm) |
16-20 | B10552-1000KIT | B10552D3-1000 | B10552D2-1000 | B10552D4-1000 | B10552D31-100 | P8309-11 |
**NOTE: Softer metals could go up to 22 gauge.
