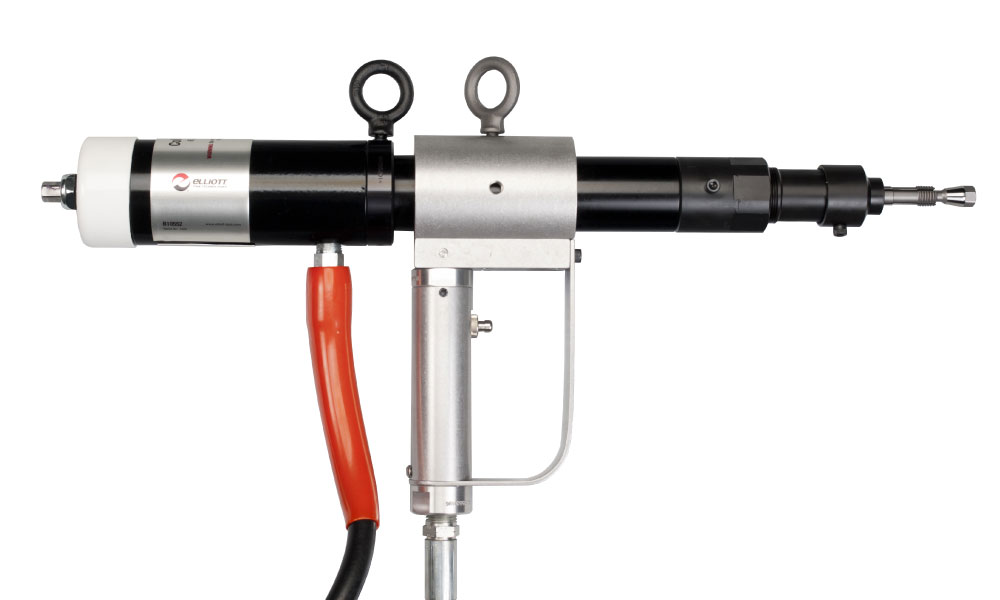

Collet Style Tube Tugger

Easily Access Tubes With 360 Degree Positioning.

With its 6 Ton pulling capacity, the Collet Style Tube Tugger automatically grips, pulls, and release the tube in a matter of seconds.

Collet Style Tube Tugger
  • Tube Size: 0.625” to 1.000” (15.9 – 25.4mm) OD

  • Type: Tube Puller

  • Application: Condensers, chillers, or heat exchangers

  • Pulling Capacity: 6 Ton

  • Stroke: 3″ (76.0mm)

  • Pulling Stroke: 2.25″ (57.2mm)

Get The Job Done Quickly

Designed for fast and efficient tube removal in condensers, chillers, and other heat exchangers. The Collet Style Tube Tugger can quickly & successfully pull over 100 tube stubs in less than an hour.

Efficient

Quick stroke cylinder pulls tube stubs in less time.

Ergonomic

Lightweight pulling ram reduces operator fatigue.

Lower Cost

Wide gripping range decreases tooling expense.

360 Positioning

The 360-degree positioning handle enables access to those hard to reach tubes near channel plates and water boxes.

Contact us for more information or to request a quote.
