Aluminum Siphon Turbine Style Tube Cleaners

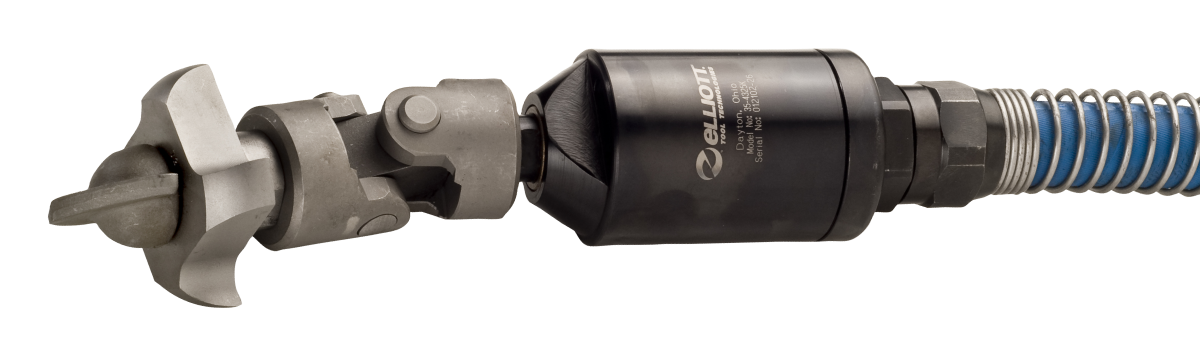

Aluminum Siphon Tube Cleaner

Tube ID Range

2.875″ to 4.750″
(73.0 – 120.65mm)

Motors

Motor OD Part Number Rotor Thread
2.375″
(60.33mm)		 136400D2375 3/4″-10
2.562″
(65.07mm)		 ET4325K 3/4″-16
2.625″
(66.68mm)		 134200D2625 3/4″-10
2.812″
(71.42mm)		 ET4350KAC 3/4″-14
3.000″
(76.20mm)		 132500D3000 7/8″-9
3.625″
(92.08mm)		 139900D3625 1-1/8″-12

Drill Heads

Drill OD Part Number Stud Thread
2.250″
(57.15mm)		 H2356-625S 5/8″-11
2.250″
(57.15mm)		 H2356-750S 3/4″-10
2.625″
(66.68mm)		 H2404-750S 3/4″-10
2.875″
(73.03mm)		 H2355-750S 3/4″-10
3.500″
(88.90mm)		 H2509-1125S 1-1/8″-12

Combination Drills

Drill OD Part Number Stud Thread
2.500″
(63.5mm)		 78H 5/8″-11
2.500″
(63.5mm)		 78HS2 3/4″-10
3.000″
(76.20mm)		 78ES1 3/4″-10

Universal Couplings

Female Threads Part Number* Diameter
3/4″-10 x 5/8″-11 L28000** 1.625″
(41.27mm)
3/4″-10 x 3/4″-10 L28000A** 1.625″
(41.27mm)
3/4″-10 x 5/8″-11 L57700A 1.812″
(46.02mm)
3/4″-10 x 3/4″-10 L27700 1.812″
(46.02mm)
3/4″-10 x 7/8″-14 L37300F 1.812″
(46.02mm)
3/4″-16 x 5/8″-11 L57700C 1.812″
(46.02mm)
3/4″-16 x 3/4″-10 L27700D 1.812″
(46.02mm)
7/8″-9 x 3/4″-10 L37300 1.812″
(46.02mm)
1-1/8″-12 x 7/8″-9 L44800A 2.000″
(50.80mm)
1-1/8″-12 x 1-1/8″-12 L44800 2.000″
(50.80mm)

*Add ST at end of part number for welded rivet option.
**Recommended for 136400D2375 motor for optimum performance.

Contact us for more information or to request a quote.
